ORION 7004

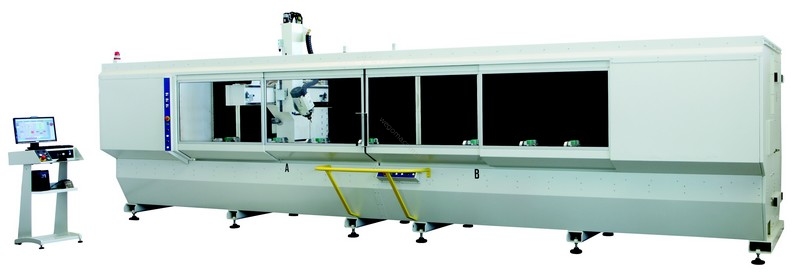

Machining center ORION 7004
Machining center ORION 7004:
- Digital four-axis numerically controlled machining center for profiles made of aluminum, light alloys and PVC.
- The software integrated with the center provides a wide range of machining possibilities in the field of milling and drilling technological holes. Operator's screen menu based on macros assigned to specific machining operations.
- Thanks to this, the operation of the executive software is simple, fast and intuitive.
- The centers are manufactured in 2 versions:
- ROBOT 7004 - with X axis length: 4000 mm
- ROBOT 7007 - with X axis length: 7000 mm
Standard equipment and functions of the center:
- operating system of the center's industrial PC (industrial PC) based on the Windows platform (OEM license version)
- operator panel screen equipped with a 19 '' color monitor
- executive software using macro functions
- the ability to generate new macros using the CAD CAM standard
- the ability to import functions from DXF files
- tool body feeds based on guides and linear bearings
- tool body drive and its positioning by servo drives Tool body drive transmission by means of highly precise, backlash-free screws
- control of the position of the pneumatic clamps of the material
- possibility of machining on the mounted profile at different angles in 3 planes
- rotating processing head in the range of angles: 0 ° to 180 °
- HSD electro-spindle with a power of 5.5 kW (7.5 HP) with a maximum speed of 12,000 rpm
- tool clamping system: standard ISO 30 (cone)
- physical lengths of the center axis:
- in the X axis (length): 4000 mm (for the ROBOT 7004 version)
- in the X axis (length): 7000 mm (for the ROBOT 7007 version)
- in the Y axis (width): 1000 mm
- in the Z axis (height): 500 mm
- speed in the X axis: 70 m / min
- speed in the Y axis: 50 m / min
- speed in the Z axis: 30 m / min
- control of the work of the 4 axis of the center
- 4 standard pneumatic clamps to hold the material (single side clamps)
- automatic placement and control of the working position of each material clamp
- max width of the material mounted in standard clamps: 225 mm working parameters of the center axis:
- max working ranges of the tool head:
- in the X axis: 3980 mm (for the ROBOT 7004 version)
- in the X axis: 6980 mm (for the ROBOT 7007 version)
- in the Y axis: 225 mm in the Z axis: 200 mm
- (work tolerance +/- 0.2 mm)
- in the axis of rotation: 180 °
- automatic tool changer for 5 tools located in the rear part of the food tool body
- automatic tool change
- thanks to the movement of the tool magazine along with the electrospindle, tools are changed quickly and empty runs are eliminated
- Due to the pass-through structure of the housing, it is possible to process profiles longer than the X axis operating range
- tool cooling system in machining processes
- a system of safety guards protecting the operator against access to the working space in the center
- gravitational chip fall to the internal gutter
- central lubrication system for mechanical components
- max. tool mounting diameter in holders: Ø 8 mm
- compressed air system operating pressure: 7 bar
- weight: 4200 kg (for the ROBOT 7004 version)
- weight: 5300 kg (for the ROBOT 7007 version)
