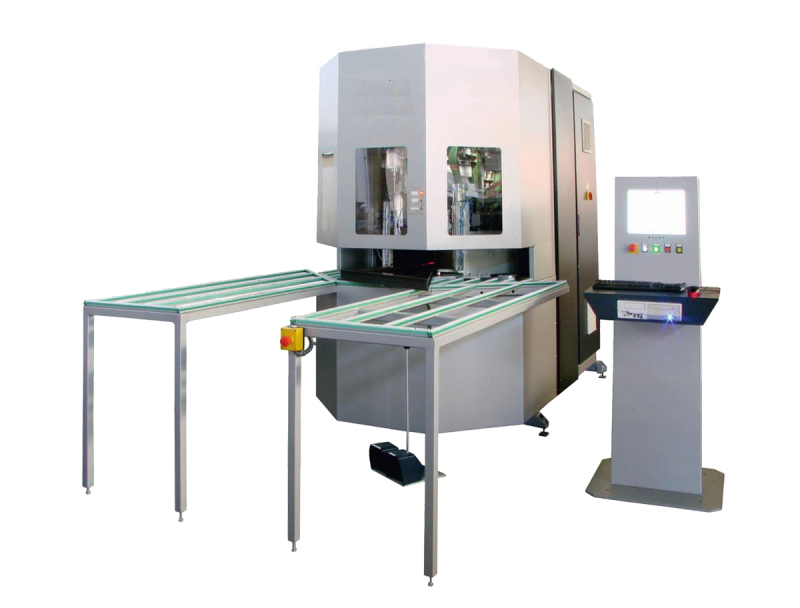

KMW APLV corner cleaner
- CNC corner cleaner with modern linear motor drive
- The machine enables the processing of profiles with angles in the range of 30-160 degrees
- Profile programming is based on a graphical interface after entering the profile drawings in a graphical format
- Tool movements with NC curves facilitate the creation and editing of programs
- Simple positioning of the window by means of a centralizer and a laser indicating the welding line
- up to 19 tools can be installed
- machining unit with a disk cutter
- slowly programmable operator panel with 17 inch TFT monitor and keyboard
- Windows operating system
- Positioning with linear motors
- profile height 45-180mm
- profile width 50-130mm
- min length 320
- minimum width 320
