RO-2011H

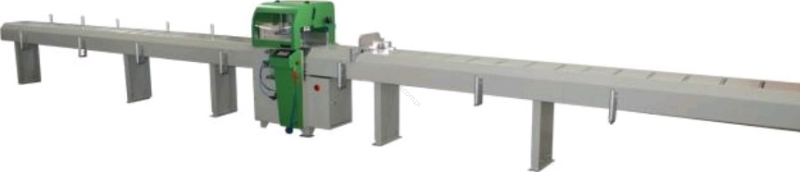

RO-2011H ROLLER SHUTTER BOX & ROLLER SHUTTER PROFILE CUTTING MACHINE
It is designed to cut shutter profiles for mass production, group of alu Shutter box, vertical alu. profiles and group of monoblock shutter box.
RO-2011H ROLLER SHUTTER BOX & ROLLER SHUTTER PROFILE CUTTING MACHINEIt is designed to cut shutter profiles for mass production, group of alu Shutter box, vertical alu. profiles and group of monoblock shutter box.
- Pc controlled with Windows operating system.
- Easy and fast data transfer because of Pc ( by usb memory ,cable , cd , wireless, Ethernet , mail etc. )
- Unlimited cutting data memory.
- Thanks to 15.6’’ lcd control screen for being user-friendly
- Clean surface cutting because of high saw rotation.
- Automatic digital measuring system with servo motor technology.
- Cutting speed of profile can be adjusted.
- It can cut all shutter box type include 350 mm box.
- Saw disc is 550 mm.
- Remote control service technology.
Technical data:
- Electrical power supply: 2,5 kW
- Compressed air supply: 6-8 bar
- Sawblade diameter: 550 mm
- Minimal cutting dimension: 500 mm
- Maximal cutting dimension: 6050 mm
- MAchine dimension: 6000 + 745 x 6000 mm/ height1610 mm
- Weight: 560 kg
