S400NC

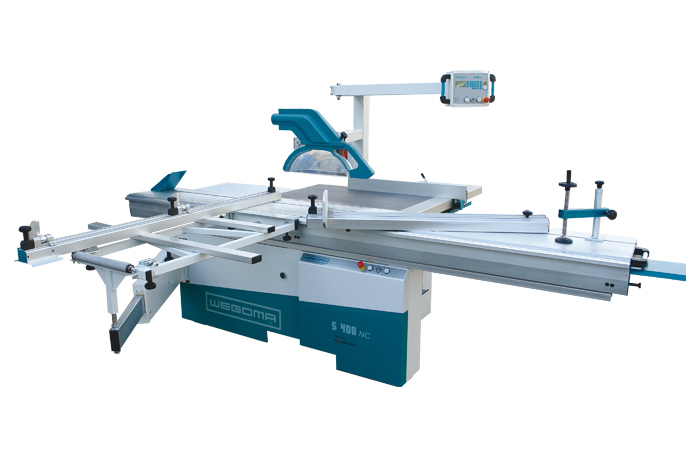

WEGOMA S400NC sliding table saw

Our S400NC saw in terms of construction and mechanics is the equivalent of the S400, the difference is the intelligent and modern electronic control system and the diagnosis function. It provides precision at the "press of a button". Comfortable control of cutting height, cutting angle, cutting width and electromotive adjustment of the scoring unit via the control panel. The control panel is mounted on a movable arm at the operator's eye level. The desired dimensions are read by means of precise magnetic tapes, which transmit the exactly read value to the display on the control panel. After switching the saw on, the electronically controlled scoring unit automatically rises to the set size, after switching it off, it returns to its starting position. During the construction of our modern control system, we paid special attention to simple and intuitive operation. As a result, the operation of the machine requires minimal operator training.

Equipment:

• Electric adjustment of saw height, tilt fence, rip fence and scoring unit. Simple input of dimensions on the control panel at the operator's eye level, desired units position themselves automatically to the desired dimension.

• Protective covers with dust extraction (narrow and wide covers, quick exchangeable) on the extension arm, holder for the cover not in use.

• 5.5 kW main engine, 3 revolutions (3000, 4000, 5000 rpm) with belt adjustment, scoring unit with its own drive.

• Angle limiter up to 3.2 m long, diagonal limiter, limiter flaps, material feeder, shelf for tools and manual quick-clamp included in the set.

The composition of the set:

• Comfortable control panel for saw operation and data display.

• Removable rip fence.

• Miter fence up to 3.2 m in length.

• Self-propelled scoring unit.

• 5.5 kW main engine.

• Miter fence for precise cutting of bevels and flat angles. Simple assembly on a sliding table, trouble-free setting of dimensions ..

• Quick-change protective covers on the boom.

• Quick manual lock for easy positioning and locking of workpieces.

• Holder for edging wooden beams.

• Small parts feeder.

• Holder for the feeder

• Tool shelf

Technical data:

Voltage 400 V, 50/60 Hz

Sliding table dimensions 2000/2800/3200/3800 x 405 mm

Max. cutting width crosscut fence (standard) 1000 mm

Max. cutting width crosscut fence (optional) 800/1300 mm

Cutting length 1730/2530/2930/3530 mm

Max. working width on the left side of the saw blade 3250 mm

Electromotive cutting height adjustment

Saw blade angle setting electromotive / 46 °

Electromotive setting of the scoring unit

Parallel fence electromotive

Motor protection - yes

Connection to the dust extraction system Ø 100 mm

Dust extraction system connection on the Ø 80 mm protective cover

Table height (standard) 870 mm

Table height (optional) 910 mm

Table dimensions 1000 x 680 mm

Saw

Max. blade diameter Ø 400 mm

Saw blade opening Ø 30 mm

Cutting height 90 ° / 45 ° with scoring unit 135 mm / 95 mm 5.5 kW engine power

Speeds 3, 4, 5000 rpm.

Scoring unit

Saw blade Ø 120 mm

Saw blade opening Ø 22 mm

Engine power 0.75 kW

Spindle speed 8000 rpm.

Weight with SWS20 / 28/32/38 1000/1050/1100/1150 kg
