KMW APHLI corner cleaner

Use the form below to ask about the price and product details

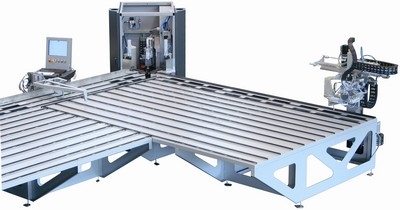

KMW APHLI cleaner

  • CNC corner cleaner with modern linear motor drive
  • Centering the corner from the inner part of the window minimizes the error of cleaning the inner edges of the window
  • Profile programming is based on a graphical interface after entering the profile drawings in a graphical format
  • Tool movements with NC curves facilitate the creation and editing of programs
  • up to 19 tools can be installed
  • machining unit with a disk cutter
  • slowly programmable operator panel with 17 inch TFT monitor and keyboard
  • Windows operating system
  • Positioning with linear motors
  • profile height 45-180mm
  • profile width 50-130mm
  • minimum dimensions of the inward opening window 220x220
  • minimum dimensions of the outward opening window 320x320
  • optional tool for varnishing colored profiles after cleaning instead of using color pens
  • opcjonalnie narzędzie do lakierowania profili kolorowych po oczyszczeniu zamiast użycia pisaków kolorowyc
