KMW APHLA

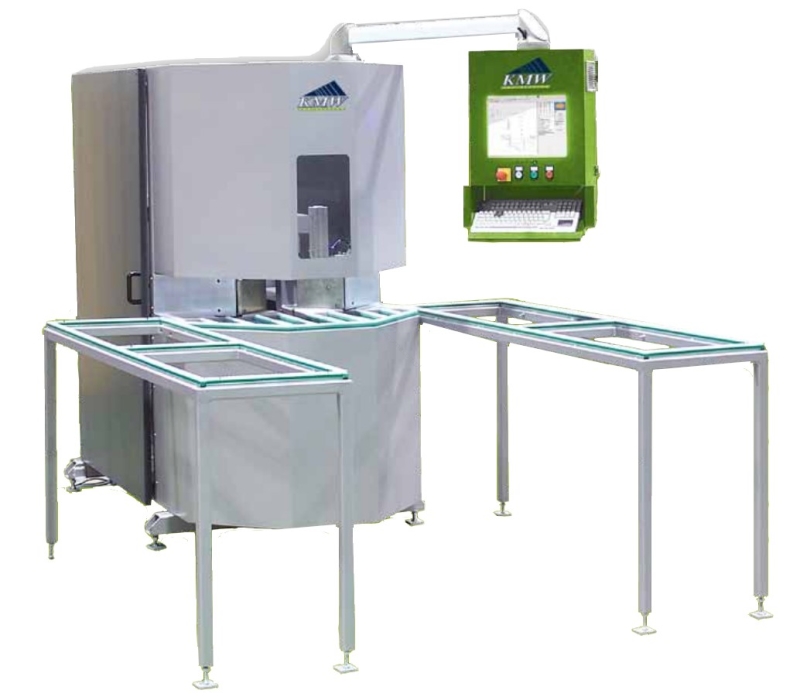

CNC corner cleaner with modern linear motor drive KMW APHLA
CNC corner cleaner with modern linear motor drive KMW APHLA
- Centering the corner from the outside of the window
- Profile programming is based on a graphical interface after entering the profile drawings in a graphical format
- Tool movements with NC curves facilitate the creation and editing of programs
- up to 19 tools can be installed
- machining unit with a disk cutter
- slowly programmable operator panel with 17 inch TFT monitor and keyboard
- Windows operating system
- Positioning with linear motors
- profile height 45-130mm (optional 180mm)
- profile width 50-130mm
- minimum dimensions of the outward opening window 320x320
